Product details
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet. Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car tracker. ? 2. Features Built-in GSM, GPS antenna, Waterproof ,compact, elegant appearance. Support GPS and LBS (Location based service) double tracking solutions. Support SMS/GPRS/Internet Network data transmission. Support configure the settings remotely. Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety. ? 3. Main Function Description 1.For all models vehicles(12-24V) 2.Location based service(LBS) + GPS double tracking solution?
3.GPS blind spot alert
4.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
5.Save GPRS traffic mode(Money save mode)?
6.Anti-theft gsm alarms:
Movement alarm
Geo-fence alarm
Over speed alarm
ext.power off alarm
low battery alarm
7.Alarms under ARM State: ?ACC/Shock alarms
8.Remotey shutdown engine
9.Support MiroSD
10.Built-in memory for 16,000 positions
11.Built-in 350 mA polymer battery?
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP ? Application:For vehicles,cars,motorcycle,fleet management. ? ? 4.Specification: ? Content Specification DIM 9.6×5.3×1.6cm Weight 70g Network GSM/GPRS Band 850/900/1800/1900Mhz GPS sensitivity -159dBm GPS accuracy 5M GPS start time Cold status? 45s Warm status? 35s ?Hot status? 1s Car power supply 12 V – 24 V Back up battery Chargeable 3.7V?350mAh Li-ion battery Storage Temp -40?C to +85?C Operation Temp -20?C to +65?C Humidity 5%–95% non-condensing ? ? 5.Hardware Description? ? ? ? ? ? ? Wiring Diagram of gps tracker 303H:

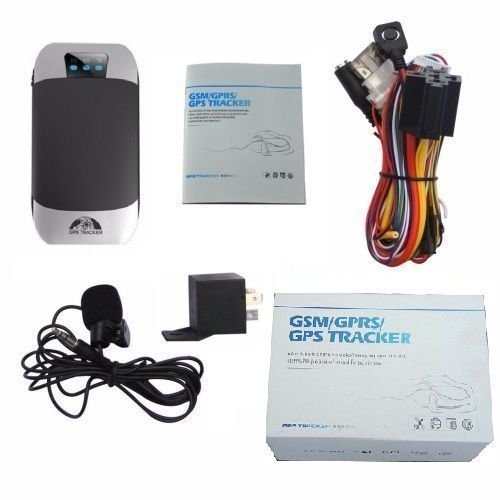

Find the 12 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the car circuit showing below: ? ??Package Content?of gps tracker 303H: 1pc * GPS Main Unit GPS303H 1pc * 12Pin harness 1pc * Screwdriver 1pc * User manual ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 1PC* External microphone ? ? ? ? ? ? ? 1PC* relays
