Product details

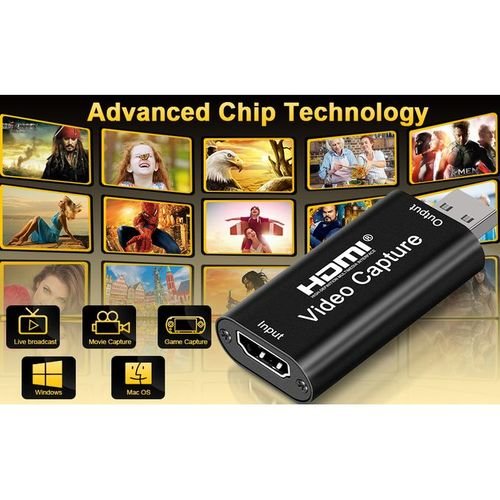

HDMI VIDEO CAPTURE

THE VIDEO CAPTURE CAN CAPTURE BOTH HDMI VIDEO AND HDMI AUDIO, SENDIN AUDIO AND VIDEO SIGNALS TO COMPUTERS AND SMART PHONES FOR PREVIEW AND STORAGE. SUITABLE FOR HIGH DEFINITION ACUISITION, TEACHING RECORDING, MEDICAL IMAGING, ETC
Features:

?

SUPPORT INPUT MAX RESOLUTION 3840X2160@30Hz

SUPPORT OUTPUT MAX RESOLUTION 1920×1080@30Hz

SUPPORT 8/10/12BIT DEEP COLOR
SUPPORT AWG26 HDMI STANDARD CABLE: INPUT UP TO 15 METERS,[1080P AND BELOW RESOLUTION]
SUPPORT MOST ACQUISITION SOFTWARE, SUCH AS VLC,OBS, AMCAP, ETC
SUPPORT WINDOWS, ANDROID AND MACOS
CONFORM TO USB VIDEO AND UVC STANDARD
CONFORM TO USB AUDIO UAC STANDARD
WITHOUT EXTERNAL POWER SUPPLY, COMPACT AND PORTABLECONFORM TO USB VIDEO 1.5 AND 1.0 STANDARD

?

SPECIFICATION

HDMI RESOLUTION……………………………………… MAX INPUT CAN BE 3840X2160@30Hz

SUPPORT VIDEO FORMAT…………………………… 8/10/12BIT DEEP COLOUR
?VIDEO OUTPUT FORMAT……………………………..YUV, JPEG
VIDEO OUTPUT RESOLUTION………………………MAX OUTPUT CAN BE 1920×1080@30Hz
?SUPPORT AUDIO FORMAT………………………….L-PCM

MAX WORKING CURRENT…………………………….. 0.4A/5VDC
?OPERATING TEMPERATURE RANGE……………..[-10 TO +55C]
?DIMENSION[L X W X H] ………………………………64X28X13 [mm]
weight…………………………………………………………..21.4g
?

THE VIDEO CAPTURE CAN CAPTURE BOTH HDMI VIDEO AND HDMI AUDIO, SENDIN
AUDIO AND VIDEO SIGNALS TO COMPUTERS AND SMART PHONES FOR PREVIEW AND
STORAGE. SUITABLE FOR HIGH DEFINITION ACUISITION, TEACHING RECORDING,
MEDICAL IMAGING, ETC
Features:

?
SUPPORT INPUT MAX RESOLUTION 3840X2160@30Hz
SUPPORT OUTPUT MAX RESOLUTION 1920×1080@30Hz
SUPPORT 8/10/12BIT DEEP COLORSUPPORT AWG26 HDMI STANDARD CABLE: INPUT UP TO 15 METERS,[1080P AND BELOW RESOLUTION]SUPPORT MOST ACQUISITION SOFTWARE, SUCH AS VLC,OBS, AMCAP, ETCSUPPORT WINDOWS, ANDROID AND MACOSCONFORM TO USB VIDEO AND UVC STANDARDCONFORM TO USB AUDIO UAC STANDARDWITHOUT EXTERNAL POWER SUPPLY, COMPACT AND PORTABLECONFORM TO USB VIDEO 1.5 AND 1.0 STANDARD

?

SPECIFICATION

HDMI RESOLUTION……………………………………… MAX INPUT CAN BE 3840X2160@30Hz
SUPPORT VIDEO FORMAT…………………………… 8/10/12BIT DEEP COLOUR?VIDEO OUTPUT FORMAT……………………………..YUV, JPEGVIDEO OUTPUT RESOLUTION………………………MAX OUTPUT CAN BE 1920×1080@30Hz?SUPPORT AUDIO FORMAT………………………….L-PCMMAX WORKING CURRENT…………………………….. 0.4A/5VDC?OPERATING TEMPERATURE RANGE……………..[-10 TO +55C]?DIMENSION[L X W X H] ………………………………64X28X13 [mm]weight…………………………………………………………..21.4g
